Balanced Startup Investment
The balanced solution for buyers who want to start production without entering the cost level of a fully automatic plant.
MEGA concrete block machine
Start Block Production Without Full-Automatic Cost
MEGA MPR 3.1 helps new producers start concrete block production with a complete semi-automatic set, visible machine proof, practical support, and quote-based production planning.
Machine

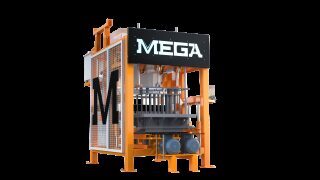

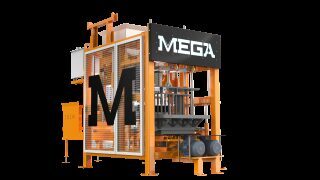

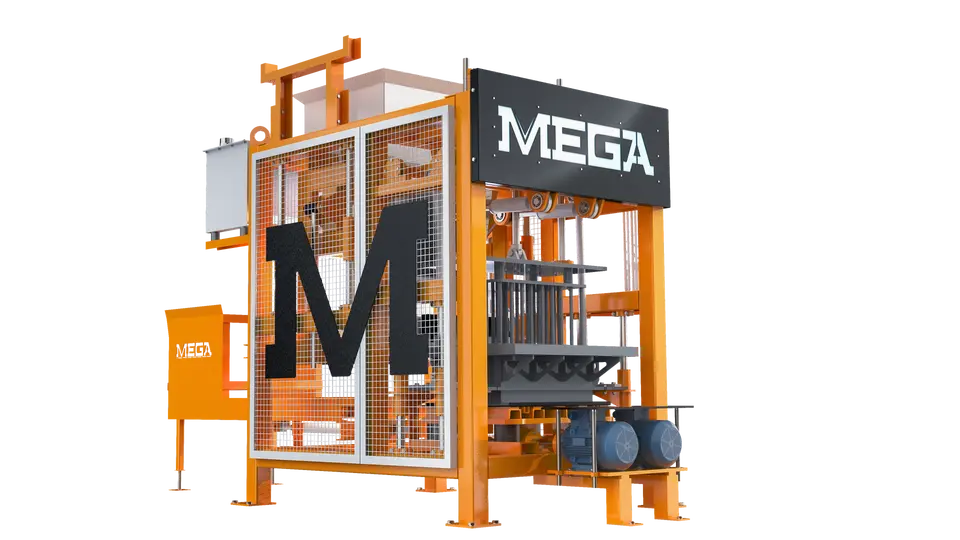

MEGA MPR 3.1 Startup Production Machine
A semi-automatic complete production set for buyers who want serious block production without the cost level of a fully automatic plant.- 3 blocks / press
- 20 cm standard block capacity
- 2 pallets / minute
- Close to 2 under suitable working conditions
- 1 day installation
- With prepared site and utilities
- 3 person starter team
- Mixing, operation, and pallet movement
Easy Semi-Automatic Operation
Hydraulic levers, pedal vibration, and sensor stop logic keep daily production understandable for first teams.
Flexible Mould Changes
Switch moulds to produce wall blocks, paving stones, and curb formats as orders change.
Support After Startup
MEGA buyers can receive spare parts supply support, WhatsApp guidance, and live video support after purchase.
Technical Specifications
Motor, Hydraulic, and Electrical Details
- Vibration Motors
- 2 x 4 kW Twin vibration motors for concrete compaction.
- Hydraulic Motor
- 1 x 5.5 kW Main hydraulic drive motor.
- Hydraulic Pump
- 19.2 cc Hydraulic pump capacity.
- Hydraulic Cooler
- Included Supports stable hydraulic oil temperature in hot climates.
- Installed Motor Power
- ~29.4 kW Known complete-set installed power; actual consumption depends on working rhythm.
- Electricity
- 3 phase Voltage and frequency can be produced for the customer market.
- Machine-Only Dimensions
- 1,730 x 3,700 mm Machine footprint excluding mixer, conveyors, and site workflow area.
- Control System
- Semi-Automatic Hydraulic control levers, vibration pedal, and sensor-based vibration stop.
Media

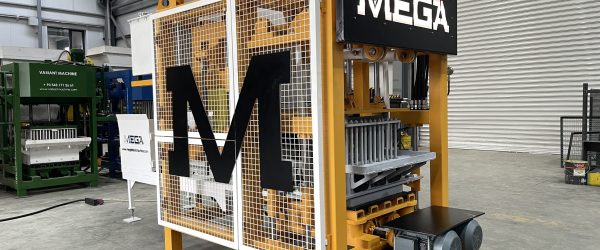

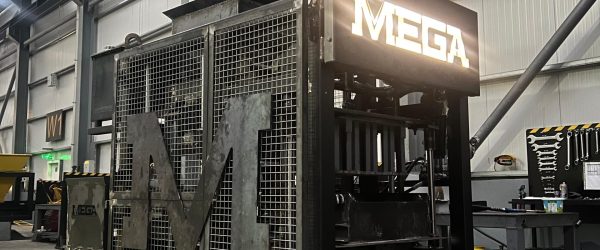

Machine Views and Vibration Video
Real machine visuals and vibration-system media for buyers who want to inspect the product before contacting sales.
Comparison
Manual machine vs MPR 3.1 vs full automatic plant
MPR 3.1 sits in the practical middle: more serious than manual/basic machines, with lower investment and lower complexity than a fully automatic plant.| Decision Point | Manual / Basic | MEGA MPR 3.1 | Full Automatic |
|---|---|---|---|
| Startup Cost | Lowest entry cost, limited output | Controlled investment with a complete production set | Highest cost and larger site requirement |
| Production Seriousness | Basic output and more operator variation | 3-block press capacity with controlled vibration | High-volume plant-level production |
| Operation | Very manual workflow | Hydraulic levers, vibration pedal, sensor stop | PLC automation and more technical complexity |
| Buyer Fit | Micro-scale testing | Startup investors and small producers | Established producers with larger demand |
Moulds
Mould and Product Combinations

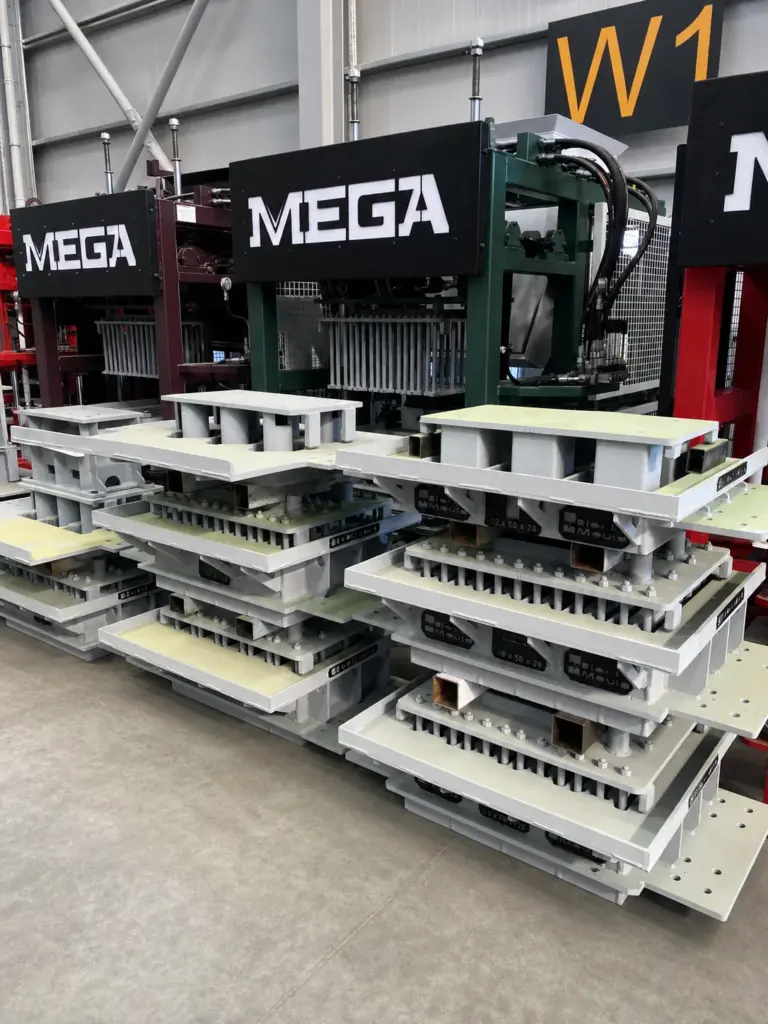

MEGA MPR 3.1 can switch output types by changing mould sets. Each mould card below is paired with product examples to show practical market-ready formats.
Hollow Block Mould
Designed for high-demand wall block formats where production speed and consistent dimensions are priorities.

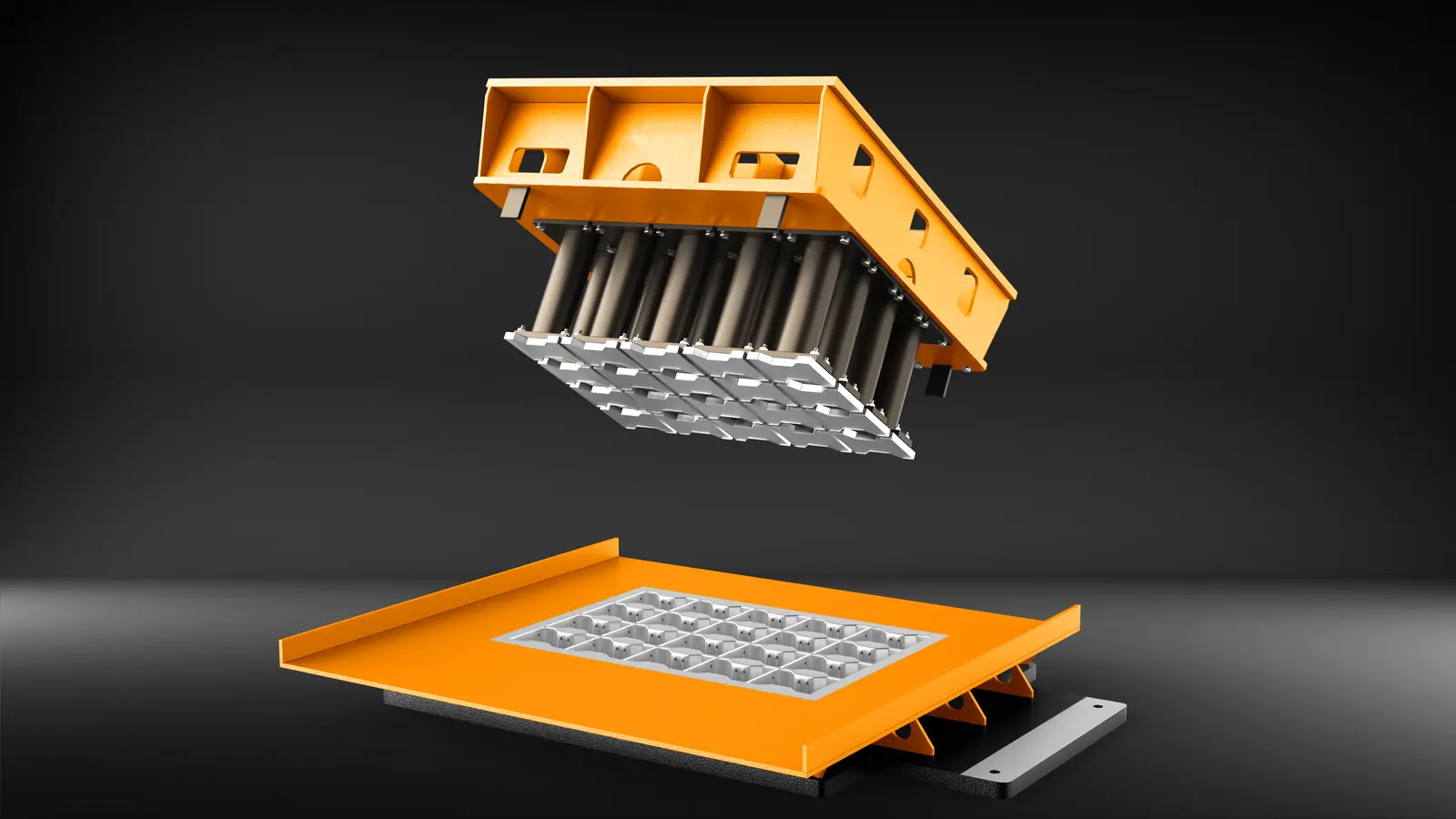

Paving Stone Mould
Focused on interlock and paving formats for municipal works, landscaping, and retail hardscape projects.

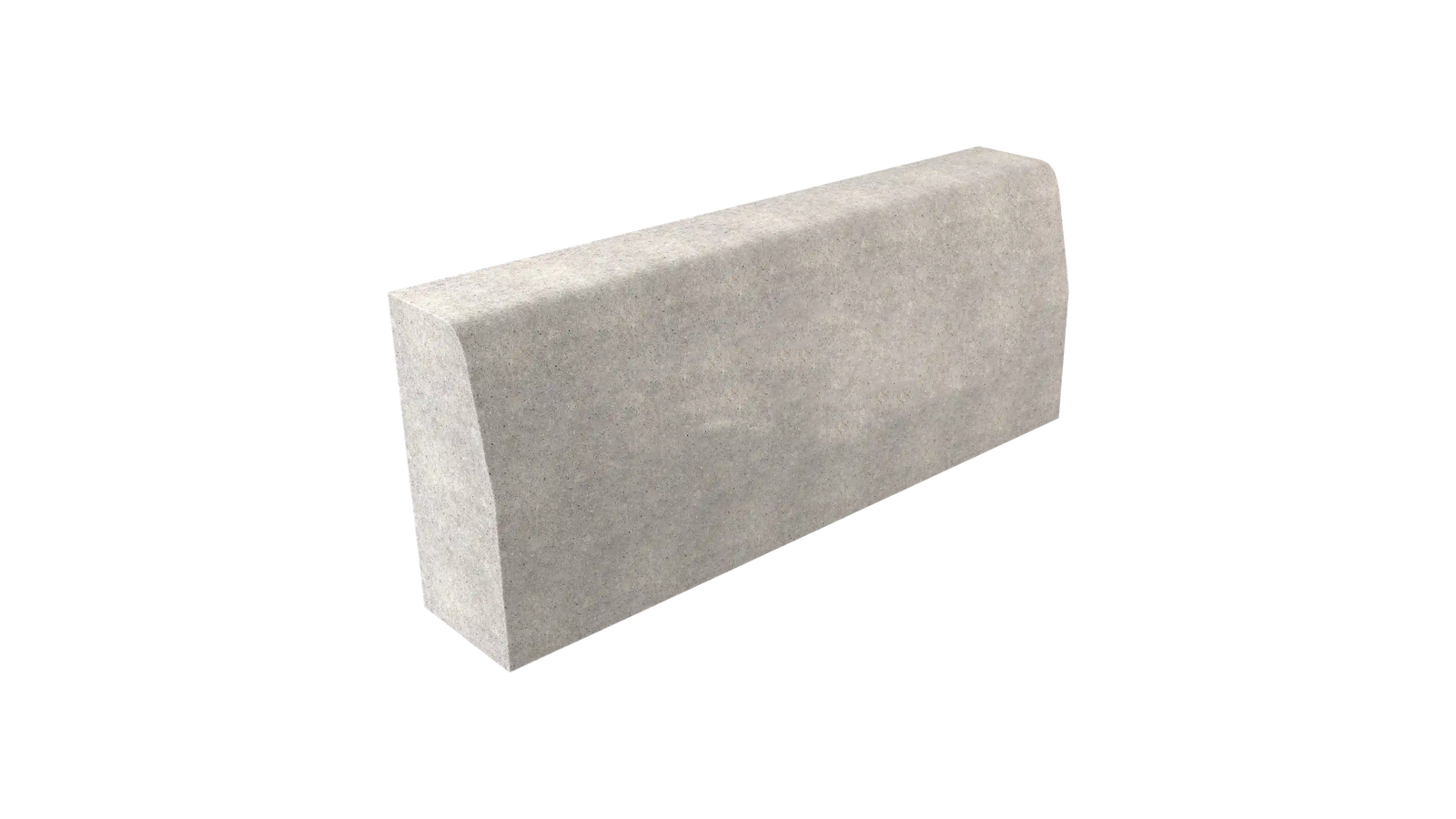

Curbstone Mould
Supports curb and edge products used in roads, site boundaries, and infrastructure finishing work.
Color Selector
Machine Color Configurator
Match the machine chassis, internal parts, and cover colors to your brand or production site preference before requesting a quote.
Chassis
Internal Parts
Cover
Working Lights
Equipments

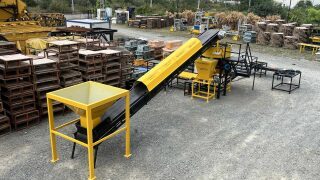

Production Equipment Set
MEGA MPR 3.1 is commonly supplied as a complete production set for stable daily workflow, easier material movement, and quote-based startup planning.2 x Conveyors
Material transfer support for a smoother complete-set workflow.
1 x Mixer
Concrete preparation equipment included in the standard production set.
3 x Trolleys
Manual pallet movement support for startup production yards.
1 x Bunker
Available equipment photo shown from the MEGA asset set.
3 x Electrical Panels
Machine, hydraulic, and mixer panels included in the set.
Contact
Request a quote for your market
Send your country, contact details, and project notes. WhatsApp and quote request forms are the main inquiry channels for MEGA.Phone
Manufacturing Base
Trabzon, Turkey
Export Reach
62+ countries
